Water pump – Pedrollo

Different water pumps available; house pumps, industrial pumps, solar pumps, hand pumps, car pumps… This imported product is reliable and is durable. This water pump is stainless steel to avoid rust and to be protected it must be installed in enclosed places and must be sheltered from inclement weather.

Pedrollo F65/200A

Different water pumps available; house pumps, industrial pumps, solar pumps, hand pumps, car pumps… This imported product is reliable and is durable. This water pump is stainless steel to avoid rust and to be protected it must be installed in enclosed places and must be sheltered from inclement weather.

Descriptions

  • Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications.
  • The pumps must be installed in enclosed places, or at least protected against inclement weather.

Specifications

Size Discharge 3″ x 2½”
Power 18500 W / Three phase
Flow Rate 200 ~ 2500 L/min
Head 50 ~ 36.5 meters
Manometric Suction Lift Max. 7 meters
Liquid Temperature Max. +90°C
Environment Temperature Max. +40°C

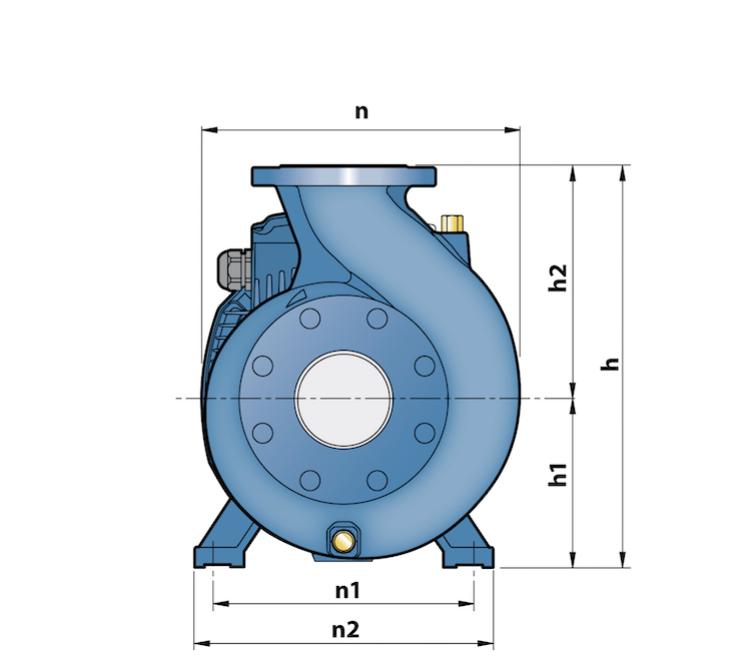

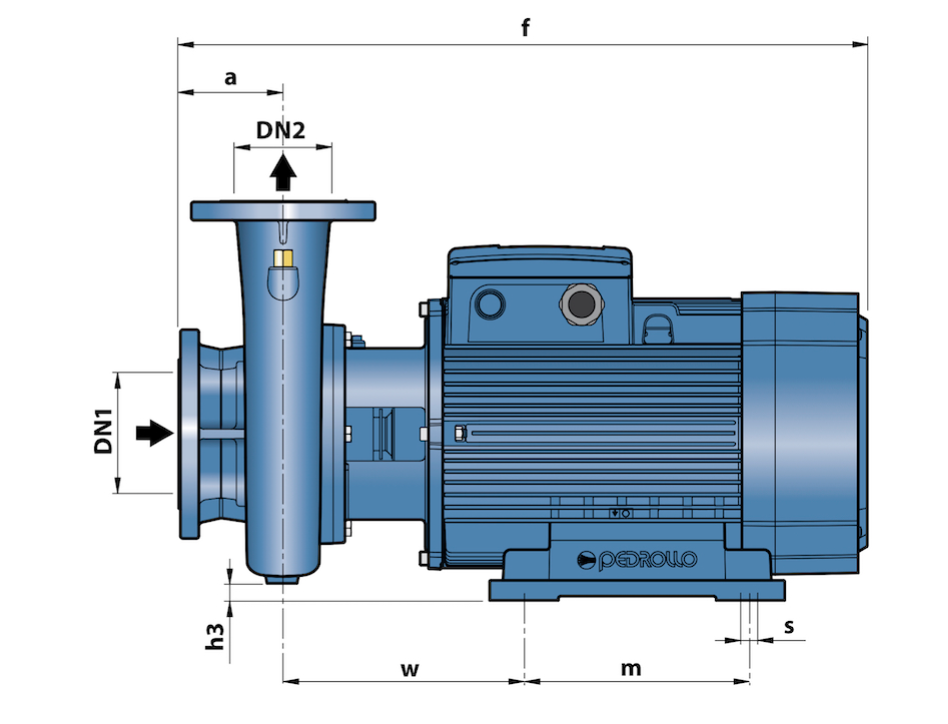

Dimensions (L x W x H) 719mm x 405mm x 340mm
Weight 133 kg

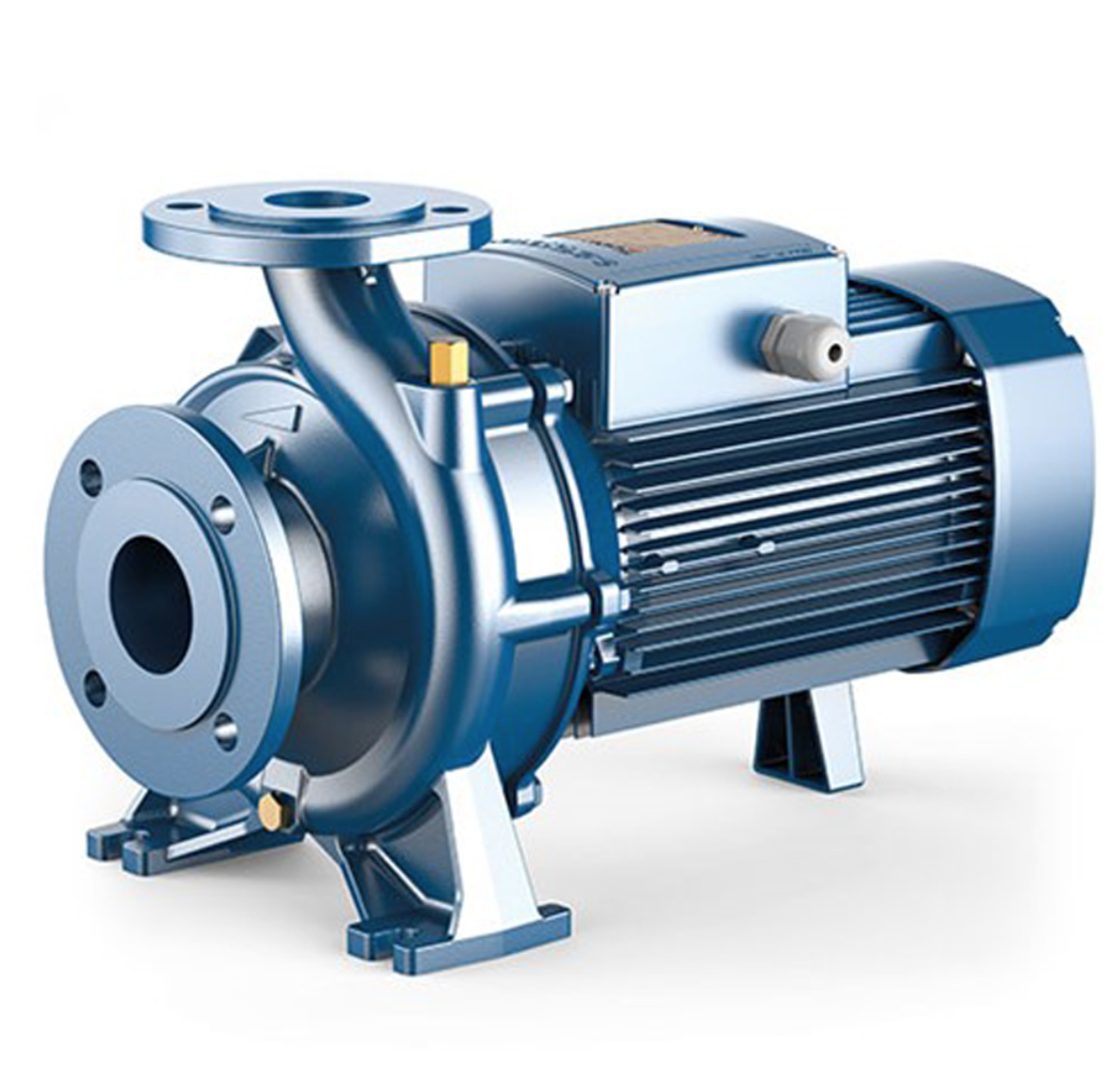

Description ModelF65/200A (Made in Italy)
Pedrollo centrifugal pump with energy saving motor “IE3”. Three phase, 415V.
Features Liquid typeclean water
Usesindustrial
Applicationswater supply systems, fire-fighting sets, air conditioning systems, washing systems, pressure systems, cooling systems, irrigation pumps
Applications Limit Temperature of the liquid from -10 °C to +90 °C Ambient Temperature da -10 °C to +40 °C Manometric suction lift up to 7 m Max. pressure in pump body 10 bar (PN10) Continuous service S1
Typologysurface
Familystandardized centrifugal pump
Accessories Included Without cable / Carton box
Performance Range Flow rate up to 6000 l/min (360,0 m³/h) Head up to 95 m
